ND:YAG

Calibration Source

ND:YAG Calibration Source
Icon Nominal Output Wavelength 1064.491152 nm

Nominal Output
Wavelength

Icon Minimal Output Power 5 mw @ 1064 nm

Minimal
Output Power

Icon Nominal Output Wavelength of SHG 532.245576 nm

Nominal Output
Wavelength of SHG

Icon Minimal Output Power 2 mw @ 532 nm

Minimal
Output Power

Icon Absolute Accuracy ± 100 kHz

Absolute
Accuracy

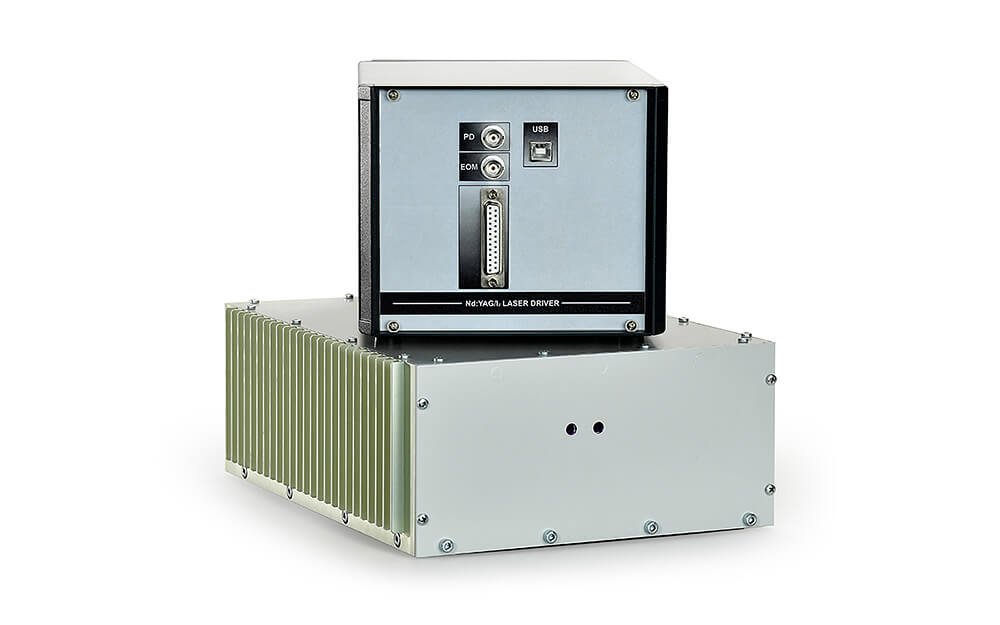

Iodine Stabilized Nd:YAG Laser and Integrated SHG

The Nd:YAG Laser System is stabilized on the saturated absorption spectrum of molecular iodine. It includes a Second-Harmonic-Generation (SHG) module providing an additional output beam at 532 nm. Its extreme stability, compactness, unmodulated output and high power makes it suitable for the calibration of all wavelength meters in the most demanding applications. A thorough understanding of the underlying technology is however required to operate this device, as it is not a simple plug & play device.

Recommended Wavelength Meter

Button Recommeded Wavelength Meter WS8-2 Button Recommeded Wavelength Meter WS8-10 Button Recommeded Wavelength Meter WS8-30 Button Recommeded Wavelength Meter WS7-60

Find Local Distributor

Button Distribution North America Button Distribution South America Button Distribution Europe Button Distribution Asia Button Distribution Australia

Further Information

Button Technical Nd:YAG Calibration Source Button Product Brochure Calibration Sources
