Multimode Switches

For Highend Wavelength Meters

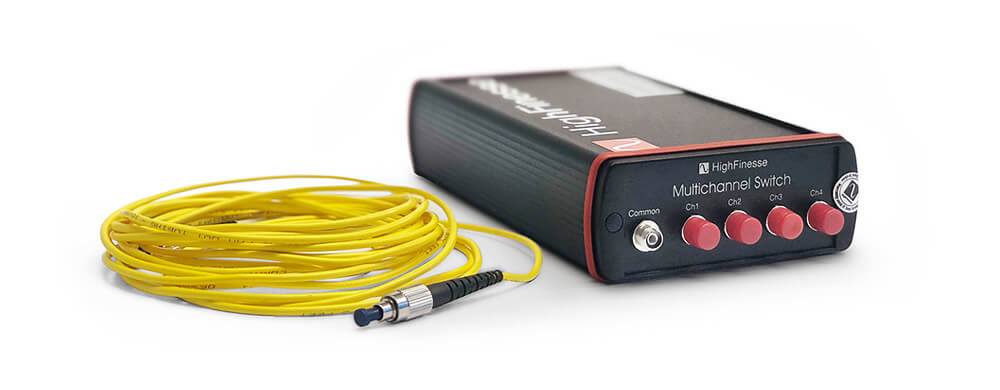

HighFinesse Multimode Switches
Icon Up to 8 Inputs for cw & pulsed Laser

Up to 8 Inputs for
cw & pulsed Laser

Icon Switching Time xx ms

Switching
Time

Icon FC/PC Fiber Connector

FC/PC
Connector

Icon Upgrade Option UV Resistance

Upgrade
Option

In multimode switches and fibers, multiple transversal modes can be transmitted at the same time. These modes can interfere with each other in the wavemeter during the measurement, leading to the so-called speckle effect. This has an adverse influence on the illumination of wavelength meters, thereby drastically worsening the measurement accuracy. The specifications for the thus affected accuracy can be found in the “Quick coupling accuracy” section of the wavemeter specification sheets.

quick coupling specs

Available Measurement Range

Icon Measurement Range 250 – 2250 nm

Measurement
Range

Interface

HighFinesse offers the singlemode switches whit a standard TTL interface, a USB-connection or a RS232-interface are optional upgrades.

Icon Standard TTL Interface

Standard
Interface

Icon Optional USB Interface

Optional
Interface

Icon Optional RS232 Interface

Optional
Interface
