WS5 Series

High Precision Wavelength Meter

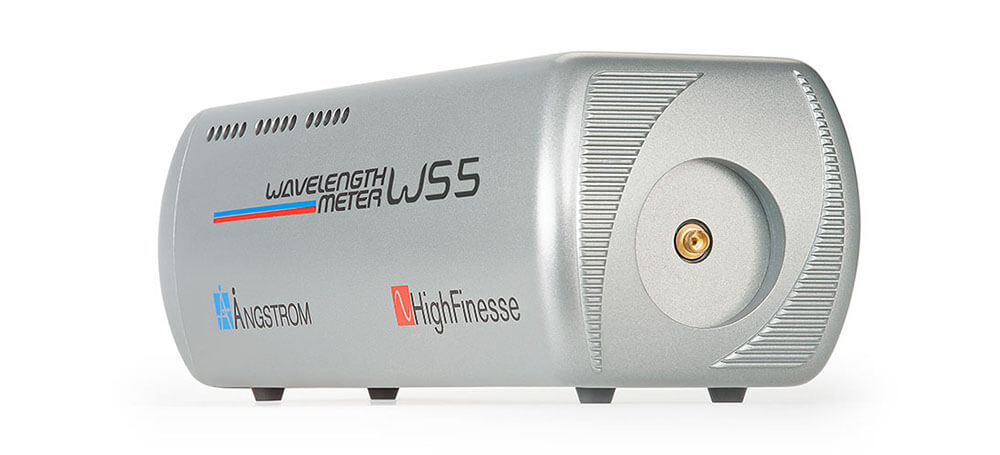

HighFinesse Wavelength Meter WS5
Icon Absolute Accuracy 3000 MHz


Absolute
Accuracy

Icon Measurement Speed up to 950 kHz

Measurement
Speed
(VIS-Devices)

Icon Measurement Speed up to 1.8 kHz

Measurement
Speed
(IR-Devices)

Icon For Pulsed and Continuous Lasers


For Pulsed and
Continuous Lasers

Icon Internal Calibration Source


Internal
Calibration Source


Icon Remote Network Access & Software Integration

Remote Network
Access & Software
Integration

Icon Plug & Play

Easy to use
Plug & Play

Icon Non-moving Part Technology


Non-moving Part
Technology

Icon Temperature compensated Fizeau Technology

Temperature
compensated Fizeau
Technology

Icon Thermally Insulated Housing


Thermally Insulated
Housing

Typical Applications

The WS5-series offers an accuracy of 3000 MHz. It is mostly chosen for pulsed lasers and broad CW lasers (linewidth > 3000 MHz) when the targeted absolute accuracy is 3000 MHz or less.

Related Products

Button Multimode Switches Button SLR-1532 for IR-III Devices

Available Measurement Ranges

Icon Measurement Range 192 – 800 nm

UV-II

Icon Measurement Range 248 – 1100 nm

UV-I

Icon Measurement Range 330 – 1180 nm

VIS Standard

Icon Measurement Range 330 – 1750 nm

VIS/IR-I


Icon Measurement Range 500 – 2250 nm

VIS/IR-II

Icon Measurement Range 630 – 1750 nm

IR-I

Icon Measurement Range 1000 – 2250 nm

IR-II

Icon Measurement Range 1400 – 11000 nm

IR-III

WS5 Upgrade Options

Icon Option TTL – External Trigger Icon Option PID – Lasercontrol Icon Option MC – Multiplexer Icon Option L – Linewidth Estimation Icon Option D – Spectrometer

Casing

HighFinesse offers the The WS5-series as compact device, standalone device, in a 19-Inch rack-mount case or customized to your needs.

Icon Compact Device

Compact
Device

Icon Standalone Device

Standalone
Device

Icon 19-Inch Rack-Mount Case

19-Inch
Rack-Mount Case

Icon OEM Device

Customization
and OEM Devices

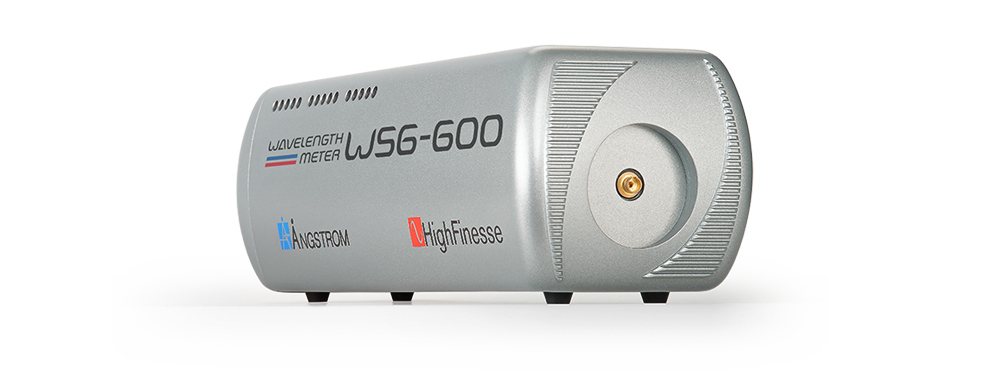

Wavelength Meter WS6-600

Need better Absolute Accuracy?

Have a look to the HighFinesse WS6-600 wavelength meter with an absolute accuracy of 600 MHz.
