Singlemode Switches

For Highend Wavelength Meters

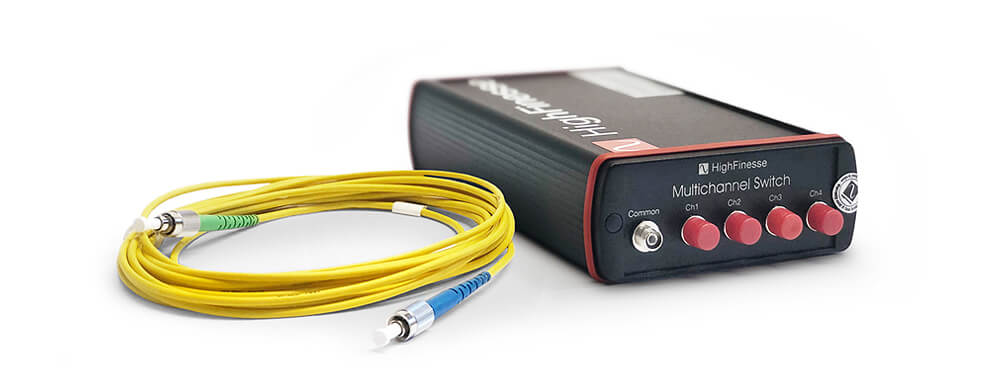

HighFinesse Singlemode Switches
Icon Up to 8 Inputs for cw & pulsed Laser

Up to 8 Inputs for
cw & pulsed Laser

Icon Switching Time xx ms

Switching
Time

Icon FC/PC Fiber Connector

FC/PC
Connector

Icon Upgrade Option UV Resistance

Upgrade
Option1)

1) UV Resistance for SM 405, SM 460 & SM 630

Measuring with the Full Specified Accuracy

In contrast to the multimode versions, in singlemode switches and fibers only the fundamental transversal mode can propagate. This eliminates the speckle effect, and allows the wavelength meters to measure with the full specified accuracy.

The drawback of these types of switches is the limited wavelength operation range. Below this range they function similarly to multimode switches, while above this range they suffer from prohibitively high transmission losses. Refer to the table for the available ranges.

Product Finder

Finding the Appropriate Switch

Channel Configurations

Icon Channel Configuration 1 x 2

Channel
Configuration

Icon Channel Configuration 1 x 4

Channel
Configuration

Icon Channel Configuration 1 x 8

Channel
Configuration

If you plan to measure UV wavelengths (below 400 nm), please inquire at HighFinesse for our custom UV reinforced switches.

Special Request

Interface

HighFinesse offers the singlemode switches whit a standard TTL interface, a USB-connection or a RS232-interface are optional upgrades.

Icon Standard TTL Interface

Standard
Interface

Icon Optional USB Interface

Optional
Interface

Icon Optional RS232 Interface

Optional
Interface
