WS6-200 Series

High Precision Wavelength Meter

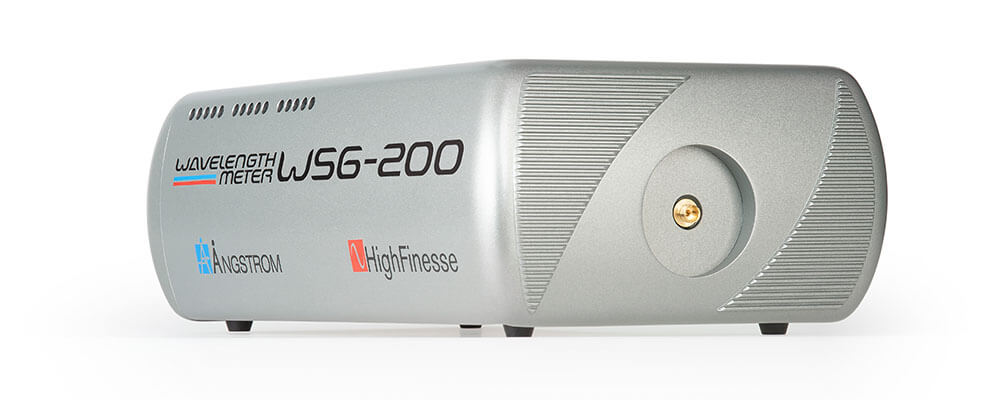

HighFinesse Wavelength Meter WS6-200
Icon Absolute Accuracy 200 MHz


Absolute
Accuracy

Icon Measurement Speed up to 500 Hz

Measurement
Speed
(VIS-Devices)

Icon Measurement Speed up to 1.8 kHz

Measurement
Speed
(IR-Devices)

Icon For Pulsed and Continuous Lasers


For Pulsed and
Continuous Lasers

Icon Internal Calibration Source


Internal
Calibration Source


Icon Remote Network Access & Software Integration

Remote Network
Access & Software
Integration

Icon Plug & Play

Easy to use
Plug & Play

Icon Non-moving Part Technology


Non-moving Part
Technology

Icon Temperature compensated Fizeau Technology

Temperature
compensated Fizeau
Technology

Icon Thermally Insulated Housing


Thermally Insulated
Housing

Typical Applications

The WS6-200-series offers an accuracy of 200 MHz. It is mostly used for pulsed lasers and cw laser. This instrument is best combined with singlemode fibers and the singlemode multichannel technology in order to reach optimum accuracy.

Related Products

Button Singlemode Switches Switches Button SLR-1532 for IR-III Devices

Available Measurement Ranges

Icon Measurement Range 192 – 800 nm

UV-II

Icon Measurement Range 248 – 1100 nm

UV-I

Icon Measurement Range 330 – 1180 nm

VIS Standard

Icon Measurement Range 330 – 1750 nm

VIS/IR-I


Icon Measurement Range 500 – 2250 nm

VIS/IR-II

Icon Measurement Range 630 – 1750 nm

IR-I

Icon Measurement Range 1000 – 2250 nm

IR-II

Icon Measurement Range 1400 – 11000 nm

IR-III

WS6-200 Upgrade Options

Icon Option TTL – External Trigger Icon Option PID – Lasercontrol Icon Option MC – Multiplexer Icon Option L – Linewidth Estimation Icon Option D – Spectrometer

Casing

HighFinesse offers the The WS6-200-series as compact device, standalone device, in a 19-Inch rack-mount case or customized to your needs.

Icon Compact Device


Compact
Device

Icon Standalone Device


Standalone
Device

Icon 19-Inch Rack-Mount Case


19-Inch
Rack-Mount Case

Icon OEM Device

Customization
and OEM Devices

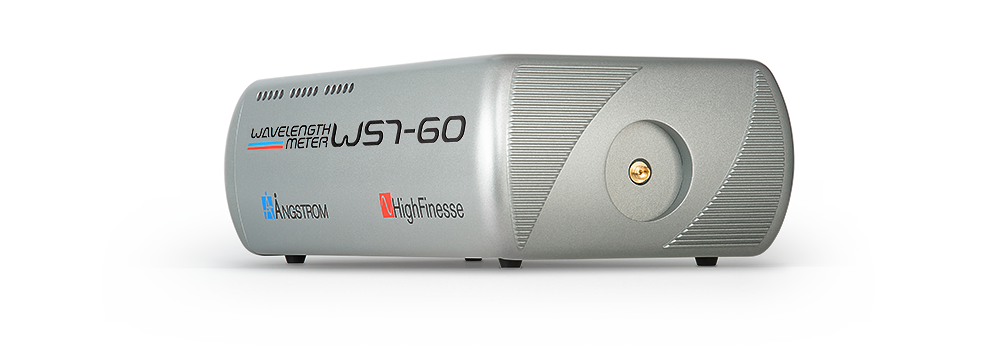

Wavelength Meter WS7-60

Need better Absolute Accuracy?

Have a look to the HighFinesse WS7-60 wavelength meter with an absolute accuracy of 60 MHz.
