WF6 Series

Fastest commercially
available Wavemeter

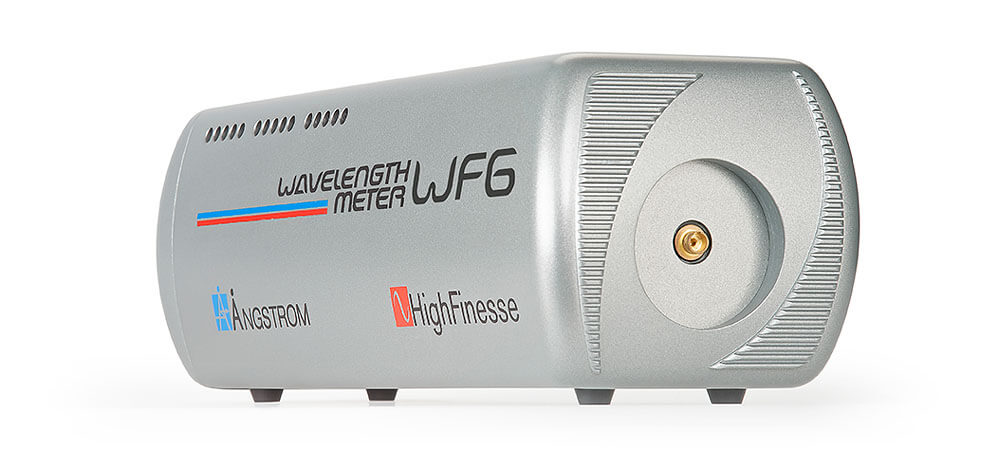

HighFinesse Wavemeter WF6 Series
Icon Measurement Range 380 – 2600 nm

Measurement
Range

Icon Measurement Speed up to 76 kHz

Measurement
Speed

Icon Absolute Accuracy 200 MHz

Absolute
Accuracy

Icon For Pulsed and Continuous Lasers

For Pulsed and
Continuous Lasers

Icon External Triggering

External
Triggering


Icon Remote Network Access & Software Integration

Remote Network
Access & Software
Integration

Icon Plug & Play

Easy to Use
Plug & Play

Icon No-moving Part Technology

No-moving
Part Fizeau
Technology

Icon Temperature compensated Fizeau Technology

Automatic
Temperature
Corrections

Icon Thermally Insulated Housing


Thermally Insulated
Housing

Speed Matters

Our WF6 series features ultra high speed measurement rates, the fastest commercially available.

The WF6 series offers excellent accuracy combined with maximum data acquisition rate of up to 76 kHz, allowing fast dynamics in the kHz range to be directly observed. Different measurement modes enable the user to record or view the frequency behaviour of the light source.

External Trigger

Icon External Triggering

External triggering allows the user to synchronize wavelength measurement with external setup by means of TTL pulses. The lightsensitive sensors are prepared for measurement up to a specifiable integration time after the arrival of the external trigger pulse.

Related Products

Button Calibration Sources
Product Video WF6 Series

Available Measurement Ranges

Icon Measurement Range 380 – 1064 nm

WF6 VIS

Icon Measurement Range 980 – 1650 nm

WF6 IR

Icon Measurement Range 1400 – 2600 nm

WF6 IR-II

Casing

HighFinesse offers the WF6 wavemeter as compact device.

Icon Compact Device

Compact
Device
